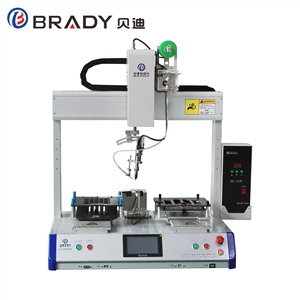

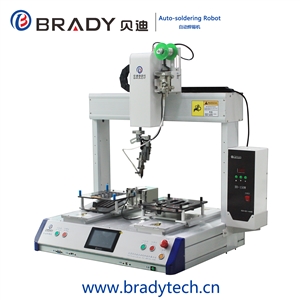

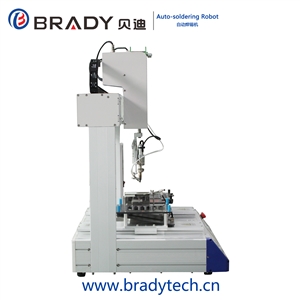

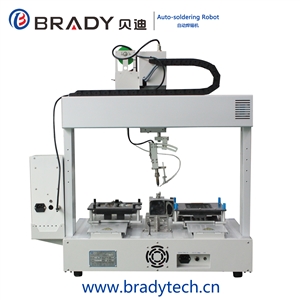

Use five axis movement control system for welding spot to exact fixed position. Put to use high-frequency eddy constant iron raise temperature and automatic feeding solder wire.

1) With the function of spot welding, drag soldering, automatic cleaning and etc. It belongs to arc welding machine.
2) With the function of position correct, position copy, array, auto-fixed location and etc. This machine can be easily to operate
3) All kinds of parameters can be set to make sure the high welding quality.
4) Using the 5 inch touch screen. The interface is simple and easy.
5) Using the high-frequency addy constant iron raise temperature and automatic feeding soldering wire.
6) Using the 5 axis movement control system for welding spot to exact fixed position.

Apply to all kinds of electronic products soldering. Such as DIP soldering,Terminal soldering and so on.

Specifications：

•    Outline size：570*550*830mm (L*W*H )
•    Working range : 460*330*100mm(X*Y*Z )
•    Uniteral stroke : 200*330*100mm(X*Y*Z )
•    Weight : 50KG
•    Drive model : 5 axis precision step driving
•    Position  accuracy : ±0.02mm
•    Control system : PLC+5 inch touch screen
•    Fixed location accuracy R axis :  ±0.05°
•    Program memory size : 256 groups, 400 pot/groups
•    Feeding solder wire : Could be edit program and auto-feeding wire
•    Temp-control system : Plause hi-frequency eddy constant raise temperature
•    Temp-control watt : 150W/320W
•    COM : USB, Support to several machine program copy
•    Lead rail : Import slid rail + Screw rod
•    Power supply : 220VAC, 50HZ
•    Air pressure : 0.3 Mpa
